It is a power unit designed to be used with static electricity receiver, static electricity prevention equipment such as Anti Static Ionizer Rod, Anti static air gun and Anti static air blower nozzle.
EN
ANTI STATIC ELIMINATOR POWER SUPPLY

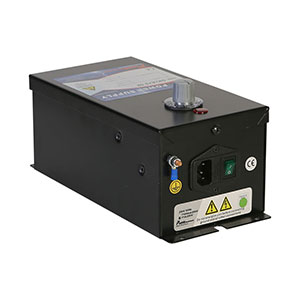

Anti Static Electric Eliminating Power Supply - 7500 VAC
Stock Code: 3 GKA75 02 0001
Anti Static Electric Eliminating Power Supply units are high voltage generating sources required for active ionization tools.
GENERAL INFORMATION
"Power Supply is source with high voltage generator designed for devices of active ionization. Its set-up and operation is simple in use and does not need any additional care. It is possible to supply the operation for more than one static bar.
There is a protection card inside of Power Supply for the system security in case of short circuit. Power Supply cuts down current and disables circuit in connected to it high voltage cable of ionization devices or ionizer. That provides longer life and safety to the transformer, what is inside of power supply."
ADVANTAGES AND USAGE AREAS
ADVANTAGES
Easy to install
High performance
Secure
Long lasting
APPLICATIONS
Coating
Lamination
Plastic bag
Page shot
Slicing (slicing)
Wrapping/warping
Expand
Folding machines
Paper production
Inflation
Shots
Extrusion
Flexo printing
Inkjet printing
In laser printing/ESA printing technology
APPLICATIONS
Main Connection :
IEC-320 Europe type
Operating temperature range :
0 - 50ºC
Connections :
4 Pieces
Output Voltage :
7.5 k VAC
Dimensions :
125 x 240 x 100 mm
Main Frequency :
50/60 Hz
Main Voltage :
220-230V AC / Optional 110V AC.
Power :
35 W
Short Circuit Current Adjust :
Output :
Less than 5 mA
Fuse :
1A
Weight :
3.7 kg
Our Alternative Products
PULS Anti Static Electric Discharging Power Supply100Hz. The Anti Static Electric Discharging Power Supply provides elimination from other Anti-static power supplies according to two different working principles.
The power unit is the high voltage generating sources required for active ionization means.
