ROTARY PADDLE TYPE LEVEL SENSOR

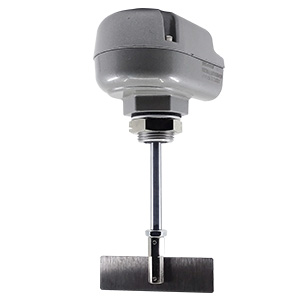

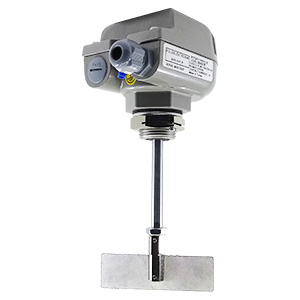

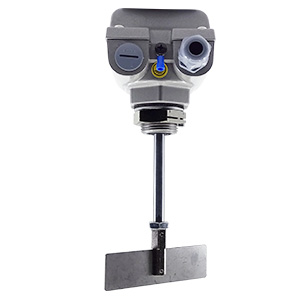

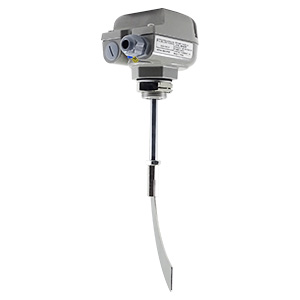

Rotary Paddle Type Level Sensor
Stock Code: 6 S1 M2 VDC
Rotary paddle level switches have been utilized for level detection for any kind of powder material inside a silo, bunker or machine working for its production.
GENERAL INFORMATION
Motor Spindle rotates freely while there is no solid material (powder or granule) inside silo or bunker. When the powder or granüle material comes to a level blocking the spindle to rtate, the mechanical switch turns off. As soon as the switch turns off, the energy of the motor is cut meaning that powder or granular material has been reached desired level.
ADVANTAGES AND USAGE AREAS
WHAT TYPES OF APPLICATIONS ARE USED?
It is used for lower (min) and upper (max) level detection in silos, tanks, bunkers and machines containing raw materials in solid form (powder or granule). Different shaft lengths, propeller type (straight or bladed type) and number of propellers can be selected depending on the physical properties (density, stickiness, moisture, etc.) of the solid substance (powder or granule) whose level will be determined.
WHAT ARE THE ADVANTAGES COMPARED TO OTHER LEVEL SENSORS?
Its most important advantage over vibrating and capacitive level sensors is that the level can be detected independently of pressure, powder movement and temperature.
AREAS OF USEOre Ore
Plaster
Grain
Grain
Cement
Dolomite
Plastic
Granule
Calcite
Fespar
One
Sand
Lime
It is used for lower (min) and upper (max) level detection in silos, tanks, bunkers and machines containing raw materials in solid form (powder or granule). Different shaft lengths, propeller type (straight or bladed type) and number of propellers can be selected depending on the physical properties (density, stickiness, moisture, etc.) of the solid substance (powder or granule) whose level will be determined.
WHAT ARE THE ADVANTAGES COMPARED TO OTHER LEVEL SENSORS?
Its most important advantage over vibrating and capacitive level sensors is that the level can be detected independently of pressure, powder movement and temperature.
AREAS OF USE
Power Consumption :
3.5 Watt
Supply Voltage :
24 VDC or 230 VAC
Ambient Temperature :
-20/+75°C
Environmental Protection :
IP65
