CHARGING GENERATOR

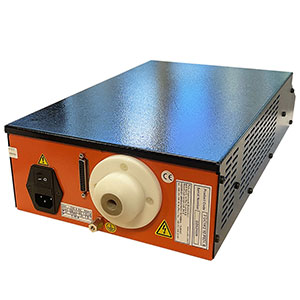

Static Charging Generator 100kV
Stock Code: 3DCYK10
Static Charger Power Supply is used for high voltage applications in industry and DC fed bars.
Mains Voltage :
90 - 240V AC
Frequency :
50/60Hz
Max. Input Power :
190 W
Mains Connection :
IEC-320 Europe Type
Fuse :
1 AT
Output Voltage :
0 - 100kV
Ripple,Peak-Peak :
%5 Output Voltage at. max. load
Max. Output Current :
1.5 mA
Max. Output Power :
150 W
Polarity :
N=Negative/P=Positive
Short Circuit Protection :
Ambient Temperature :
0-60°C
Voltage Stabilization :
%1 at max output voltage and load
Remote Control :
0V=Off 12-24V=On 0-10V DC
Input-Output Connectors :
1xHV output, 1xI/O Sub-D 25
Weight :
11.1 kg
High Voltage Setting :
0-10 V
Rated Output :
Relay Output That Reports The Fault Status of the Device, High Voltage Active Output, Grounding Load Output
Dimensions :
247 x 110 x 500 mm
Approval :
CE
Class :
IP20
