CHARGING GENERATOR

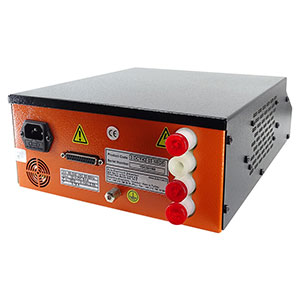

Static Charging Generator 40kV
Stock Code: 3DCYK04
Static Charger Power Supply is used for high voltage applications in industry and DC fed bars.
GENERAL INFORMATION
Static Charging Generator is appropriate for high voltage applications and for powered bars. The unit''s output voltage and protection current value are digitally set by using front panel. The output voltage can be set between 0kV-40kV and as to current it is between 0 - 4mA. The power supply includes remote on/off and remote voltage adjustment settings and also can produce both positive and negative charges.
ADVANTAGES AND USAGE AREAS
ADVANTAGES
Easy to install
Digital output setting
Rotaring front panel by 180°
4 x HV output
APPLICATIONS
In mold labelling (IML)
Bags on Roll
DVD Manufactoture
Board Laminating
Compensating Stackers
Film Bag with Gusset
Multi sheet Feeders
Fiat Bag With Gusset
Side Weld Bag Handles
Shrink Wrapping
Electrostatic Bonding
APPLICATIONS
Mains Voltage :
90 - 240V AC
Frequency :
50 /60Hz
Max. Input Power :
210 W
Max. Input Power :
IEC-320 Europe Type
Fuse :
1 AT
Output Voltage :
0 - 40kV
Ripple,Peak-Peak :
%5 Output Voltage at. max. load
Max. Output Current :
4uA
Max. Output Power :
160 W
Polarity :
N=Negative/P=Positive
Short Circuit Protection :
Short Circuit Current Adjust
Ambient Temperature :
0-60°C
Voltage Stabilization :
%1 at max output voltage and load
Remote Control :
0V=Off 12-24V=On 0-10V DC
Input-Output Connectors :
4xHV output, 1xI/O Sub-D 25
Weight :
7,1kg
High Voltage Setting :
0-10 V
Rated Output :
Relay Output That Reports The Fault Status of the Device, High Voltage Active Output, Grounding Load Output
Dimensions :
245 x 113 x 358 mm
Approval :
CE
Class :
IP20
