CHARGING GENERATOR

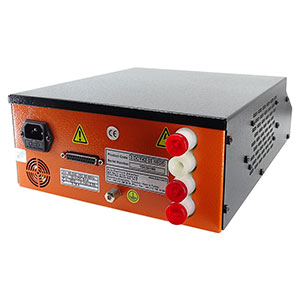

Static Charging Generator 60kV
Stock Code: 3DCYK06
Static Charger Power Supply is used for high voltage applications in industry and DC fed bars.
GENERAL INFORMATION
HVDC 60 Charging Generator is suitable for high voltage applications in industry and for DC
powered bars The unit output voltage and protection current value are set digitally by using the
front panel The output voltage can be between 0kV-60kV and current can be set between 2.5uA
The power supply includes remote on/off and remote voltage adjustment setting and is available
as positive or negative.
ADVANTAGES AND USAGE AREAS
ADVANTAGES
Easy to install
Digital output setting
Rotaring front panel by 180°
4 x HV output
APPLICATIONS
In mold labelling (IML)
Bags on Roll
DVD Manufactoture
Board Laminating
Compensating Stackers
Film Bag with Gusset
Multi sheet Feeders
Fiat Bag With Gusset
Side Weld Bag Handles
Shrink Wrapping
Electrostatic Bonding
APPLICATIONS
Mains Voltage :
90 - 240V AC
Frequency :
50 /60Hz
Max. Input Power :
190 W
Mains Connection :
IEC-320 Europe Type
Fuse :
1 AT
Output Voltage :
0 - 60kV
Ripple,Peak-Peak :
%5 Output Voltage at. max. load
Max. Output Current :
2,5mA
Max. Output Power :
150 W
Polarity :
N=negatif/P=positive
Short Circuit Protection :
Automatic Output Protection on Output Stream
Ambient Temperature :
0-60°C
Voltage Stabilization :
%1 at max output voltage and load
Remote Control :
0V=Off 12-24V=On 0-60V DC
Input-Output Connectors :
4xHV output, 1xI/O Sub-D 25
Weight :
7,9kg
High Voltage Setting :
0-10 V
Rated Output :
Relay Output That Reports The Fault Status of the Device, High Voltage Active Output, Grounding Load Output
Dimensions :
245 x 113 x 358 mm
Approval :
CE
Class :
IP20
