ANTI STATIC ELIMINATOR ANTI STATIC BARS
Anti Static Capacitive Bars
Stock Code: 3 KDA55 01

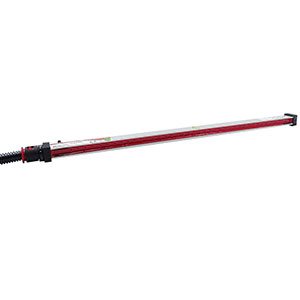

Anti-Static Capacitive Bar; is a special static electricity preventer developed specifically for low-grammage processes where sensitivity is at its peak, thin paper operations, and delicate woven fabrics such as silk. Thanks to the capacitive structure in its design, it does not produce arcs or sparks from its needles, providing safe neutralization even for the most sensitive materials. It is used in conjunction with a 5500V power supply.
SHARE:
GENERAL INFORMATION

Puls Capacitive Ionizer Bar can be easily mounted even in the narrowest spaces on the machine thanks to its thin and compact body structure. The most fundamental feature that distinguishes this bar from others is that it operates with a near-zero offset voltage. This allows it to show maximum effectiveness in cases where the static charge is very low but still disrupts the accuracy of the process (such as cigarette paper or micro-electronic packaging).

Its capacitive design completely eliminates the risk of electric shock in case the emitter needles are touched. With its powerful performance and fast discharge time, it neutralizes the material without interrupting production speed. These bars, which do not require any calibration, offer hygienic and high-performance production for many years as long as they are cleaned.

ADVANTAGES AND USAGE AREAS

Ultra-Precise Neutralization: Discharge performance closest to 0kV, ensuring perfect stabilization even at extremely low static load levels.

Maximum Safety: Eliminates any risk of arcing, sparking, or electric shock thanks to its advanced capacitive structure.

Compact Design: Features an ideal slim profile specifically engineered for narrow and hard-to-reach mounting points in complex machinery.

Long-Lasting and Maintenance-Free: A reliable system that requires no calibration and maintains peak performance with only basic cleaning.

Sensitive Application Areas:

  • Paper Industry: Precision control in cigarette paper, low-grammage packaging papers, and high-speed paper folding machines.
  • Textile: Specialized static removal for real silk weaving, fine tulle, and delicate synthetic fabrics.
  • Printing & Labeling: High-accuracy surface cleaning and stabilization in inkjet and laser printing processes.
  • Plastic & Film: Optimized for very thin plastic film drawing and sensitive bag production lines.
  • Coating: Critical static elimination for optical surfaces or high-precision surface coating processes.
Mains Voltage :
5,5k V. AC.
Weight :
0.6 kg/m
Working Temperature :
0-60°C
Ambient Humidity :
Max.70%RH
Dimensions :
22 x 29 mm Profil
Cable Length :
2.5 m HV Cable
Construction :
Aluminum and PVC
Length :
100-4000 mm
Main Frequency :
50 Hz
Output Current :
Less than <5mA
Short Circuit Protection :
Capacitive
Effective Distance :
15-30 mm
Max. Effective Distance :
30 mm
Maunting :
Emmiters :
Stainless 304
Approval :
CE

Pdf dokümanı hazırlanıyor. Lütfen daha sonra tekrar deneyiniz...

Pdf dokümanı hazırlanıyor. Lütfen daha sonra tekrar deneyiniz...

5500VAC Power Unit is a reliable and compact energy source that provides the high voltage required for the operation of anti-static capacitive bars. By ensuring the neutralization of static charges accumulated on materials during production processes, it eliminates production defects and the risks of electrical shocks.
