ANTI STATIC CONTROL NOZZLES

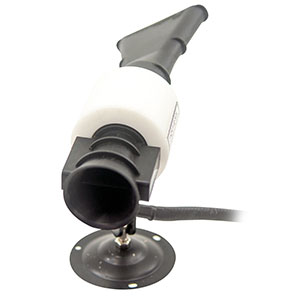

Anti Static Ionizer Nozzle with Acrobat Foot
Stock Code: 3 NZK / Y 02 0025
In industrial applications, Anti Static Ionizer Nozzle with Acrobat Foot are designed to neutralize the static load of regional points, which can be adjusted according to any angle, in small spots where anti-static bars cannot be attached and in hard-to-reach spots.
GENERAL INFORMATION
"Antistatic air nozzles are designed for static elimination of small points thanks to its acrobat feet which can be adjusted according to every angle. Processes such as static elimination of deep cups, bottles, tube ends can be mentioned as example. Air is distibuted until the deepest end. Accordingly undesired dust particles are removed from the environment by means of the compressed air. Thanks to its high performance air nozzle provides quick static elimination. Static control nozzle ionizes the air by means of the created electrical arc to plus and minus ions. Ionized molecules are transported to farer distances with the help of the air nozzles. Any ion carrying its own charge neutralizes the opposite charge. Meanwhile electrical shockings, explosions, fire and collection of dust will be prevented.
Static Control Nozzles provide reliably long time performance and do not require any additional calibration and cleaning. Pins are capacitively connected to high voltage so that not giving harm to human health. Air which will be applied from compressor to system shall be dry. It has a simple and ergonomic working mechanism."
ADVANTAGES AND USAGE AREAS
ADVANTAGES
Easy to install
Fast discharge time
Small and compact
Low price
Can be positioned according to all kinds of pain
Low air consumption thanks to internal venturi system
APPLICATIONS
In-mould labeling
Optical
Auto parts production
Offset printing
Pad printing
Plastic sheet
Electronic parts production
Cleaning before painting
Lens Cleaning
Furniture industry
Packing
Packing
Main Voltage :
7.5 kV.AC.
Ambient Humidity :
Max. %70RH
Ambient Temperature :
0-60°C
Operating Distance :
500mm
Main Frequency :
50/60 Hz
Approval :
CE
Air pressure :
6 bar
Construction :
PVC
Output Current :
Less than <5mA
Dimension :
146 x 164 mm
Cable Length :
4 m Hv Kablo
Short Circuit Protection :
100 MΩ >Insulation Resistance
